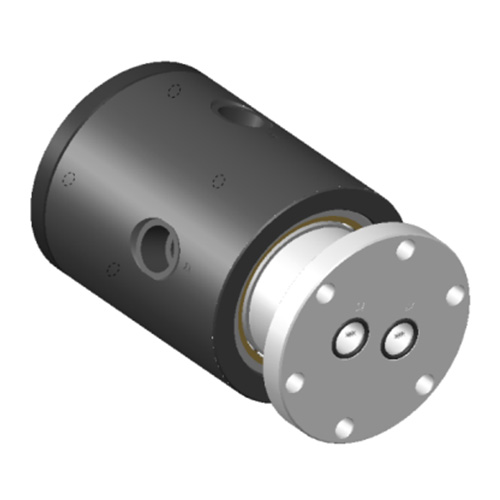

HY-Q type rotary connector / rotary joint

Technical parameters:
Maximum speed:150RPM
Maximum pressure:30MPa
Maximum temperature:80℃
Medium: hydraulic oil

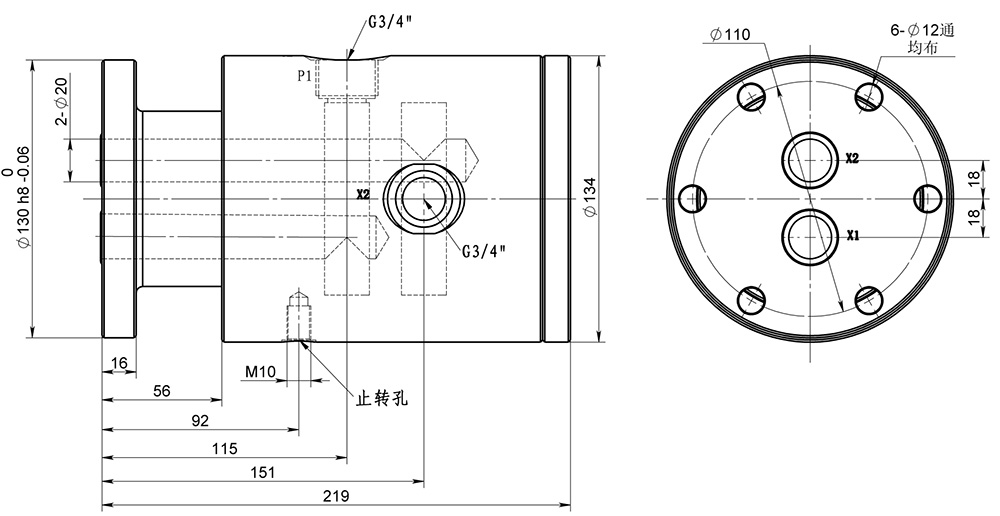

Outline dimension drawing
