Wind power coupling 1.5-5Mw

Our company mainly operates in the aftermarket of wind power,1.5-5Mw wind power couplings, Haikun has a complete design theory and manufacturing process of wind power couplings, which can realize the overall replacement (KTR, CENTA, etc.), and can also realize the replacement and maintenance of parts according to the needs of customers.

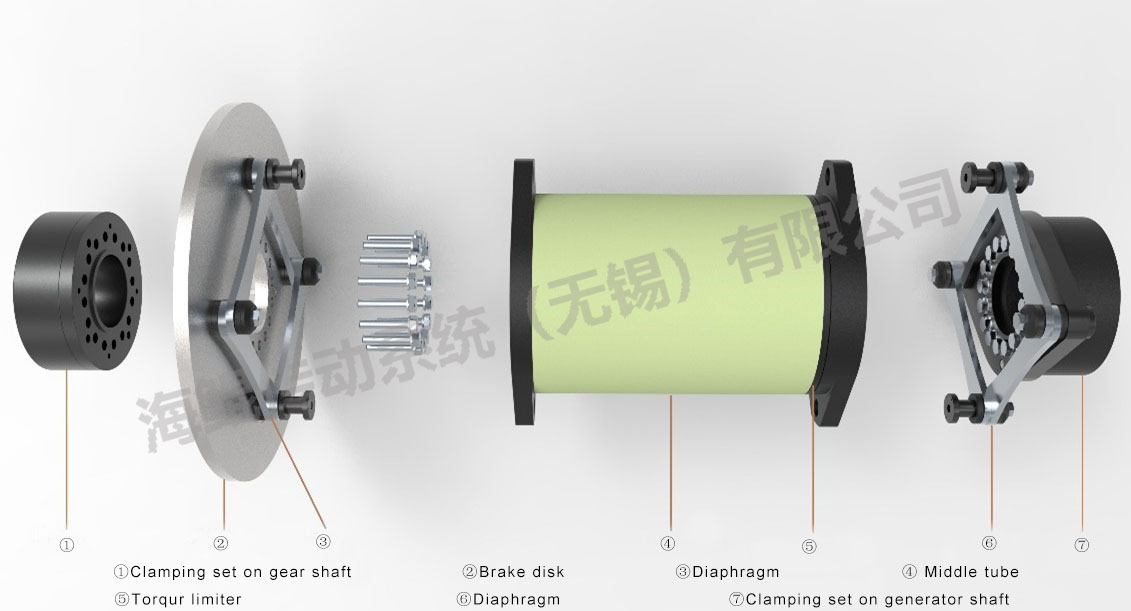

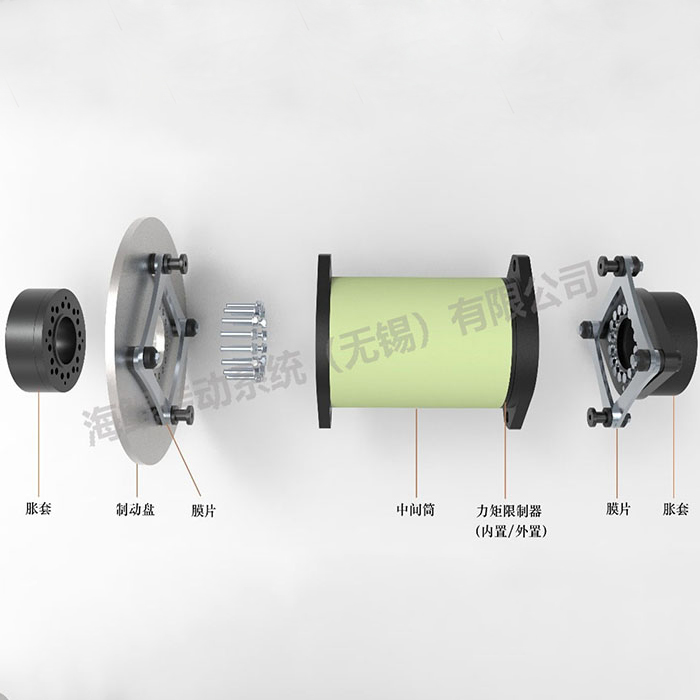

We can provide complete couplings or individual components , diaphragm parts, expasion sleeves, brake discs, torque limiters, etc. and failure analysis and technical support.

Advantage：

Design Science: Each proposal includes core data such as multi-dimensional simulation calculations and fatigue life assessment, providing theoretical support for reliability.
Strong durability: The diaphragm group undergoes a secondary strengthening process and is treated with Dacromet anti-corrosion, achieving a corrosion resistance level of C4H and adapting to harsh environments in various scenarios.
Safety and stability: The torque limiter supports both internal and external customization. It is equipped with copper-based powder metallurgy friction plates, which are resistant to high temperatures and wear, and maintains no degradation during long-term operation.
Excellent insulation: The middle tube component adopts a gel storage groove bonding structure. Under DC1000V conditions, the resistance value is greater than 200MΩ, meeting the high-standard insulation requirements.
